MT200 TAO

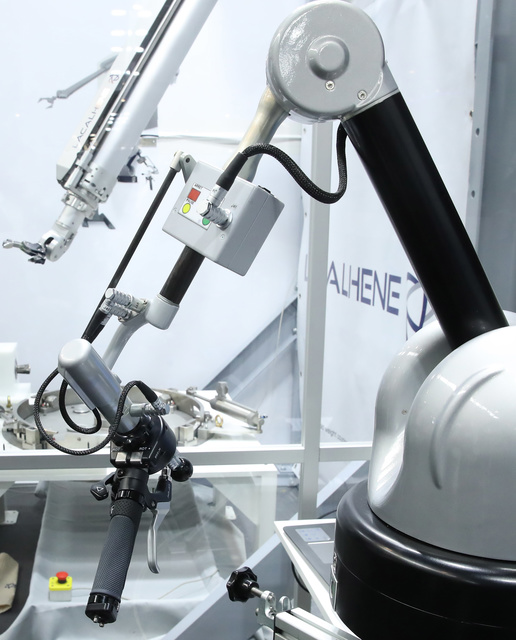

The MT200 TAO is derived from the standard MT200 by integration of an electrical power module and a mini electrical master arm.

Entirely powered by electrical engines and computer controlled, the MT200 TAO gives full feedback for the operator. It has complete 360° capacity around the main axle.
Operating gains of 60 to 65 % have been achieved thanks to reduction in operator fatigue. Gains of 20 percent are achieved through improved movement accuracy.

Fully compatible, there is no need to replace the slave arm, the thru-tube and sealing system when upgrading from MT200 to MT200 TAO.

MT200 TAO

A new generation manipulator, fully electrically powered with software control

  • Improved operator comfort thanks to the electrical power module and the mini electrical master arm
  • Perfectly fits large cells
  • 5 models (slave arm length)
  • Fully balanced
  • Clamping force at tongs is 20 kg
  • Both arms have 7 degrees of freedom, reproducing complete movement (comparable with the human arm)

Accessories

The wide range of functional accessories makes the MT200 TAO a precise tool for all types of operations.

Lifting device

Handling and installation lifting device

Trolley

Storage trolley

Ejection device

Pneumatic ejection device for replacing the booting

Parking fixture

Parking fixture for tongs, jaws and sealed adaptor disconnection and connection

Maintenance tool kit

Maintenance tool kit

Positioning Tool

Tool for setting the slave arm horizontal position (for disconnectable version)
